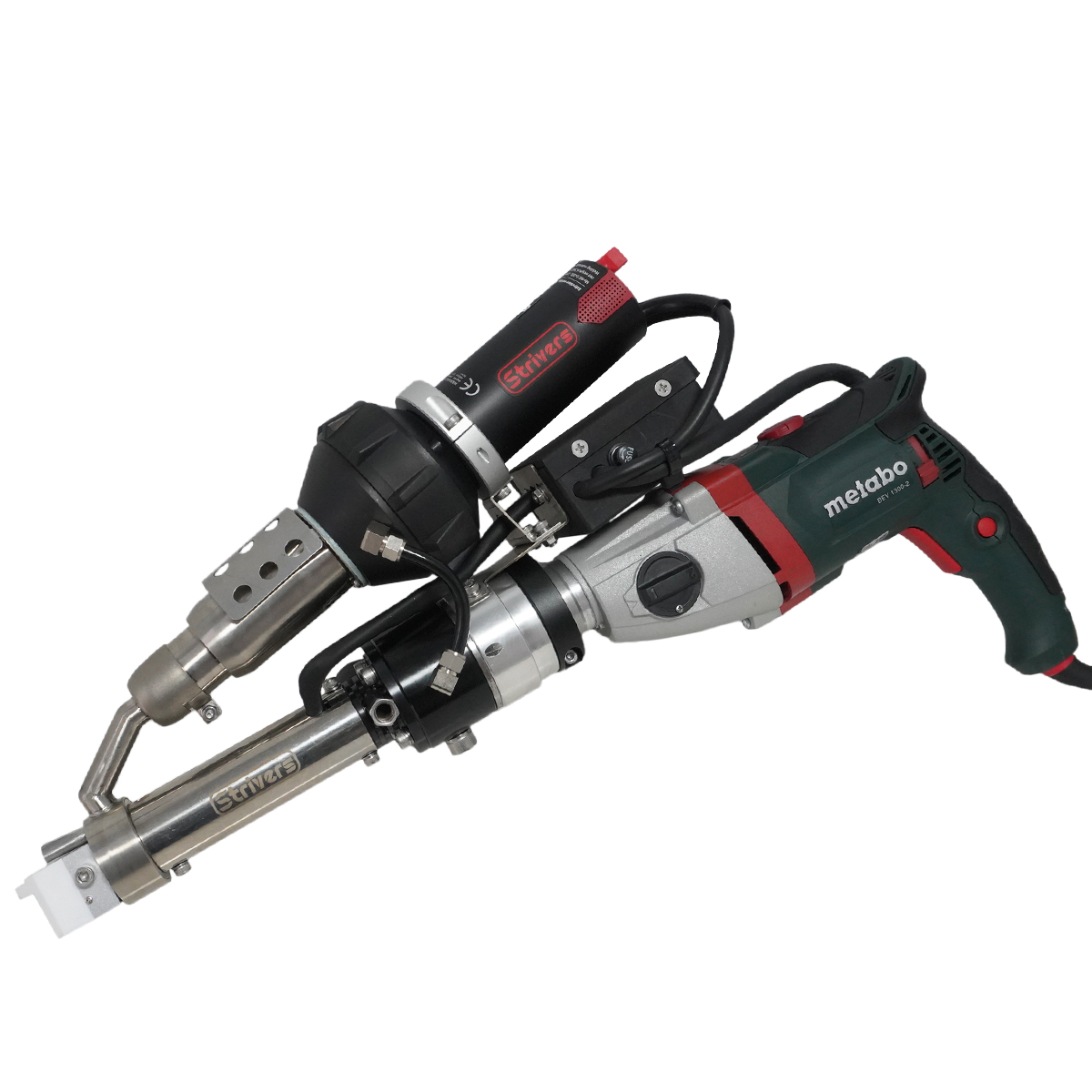

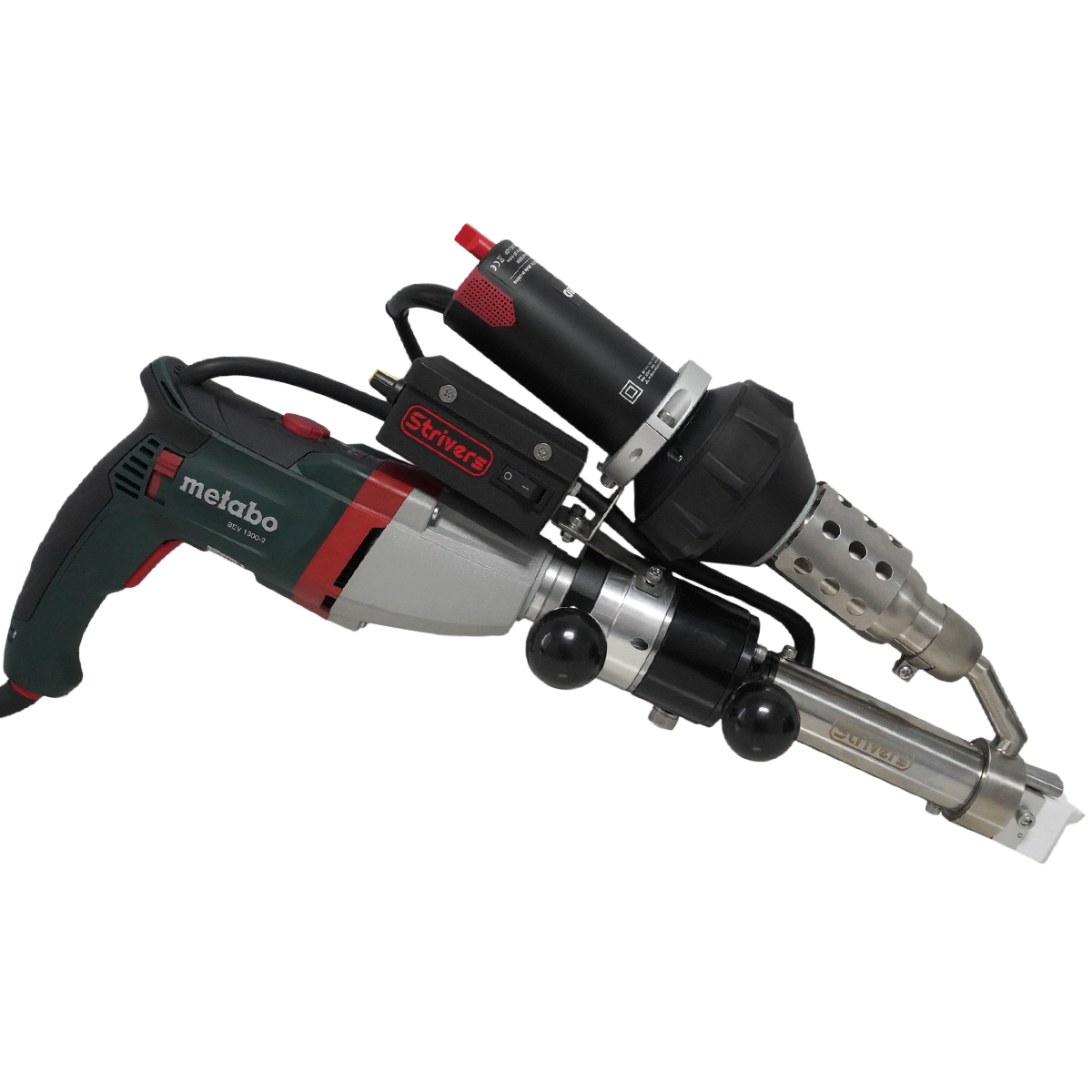

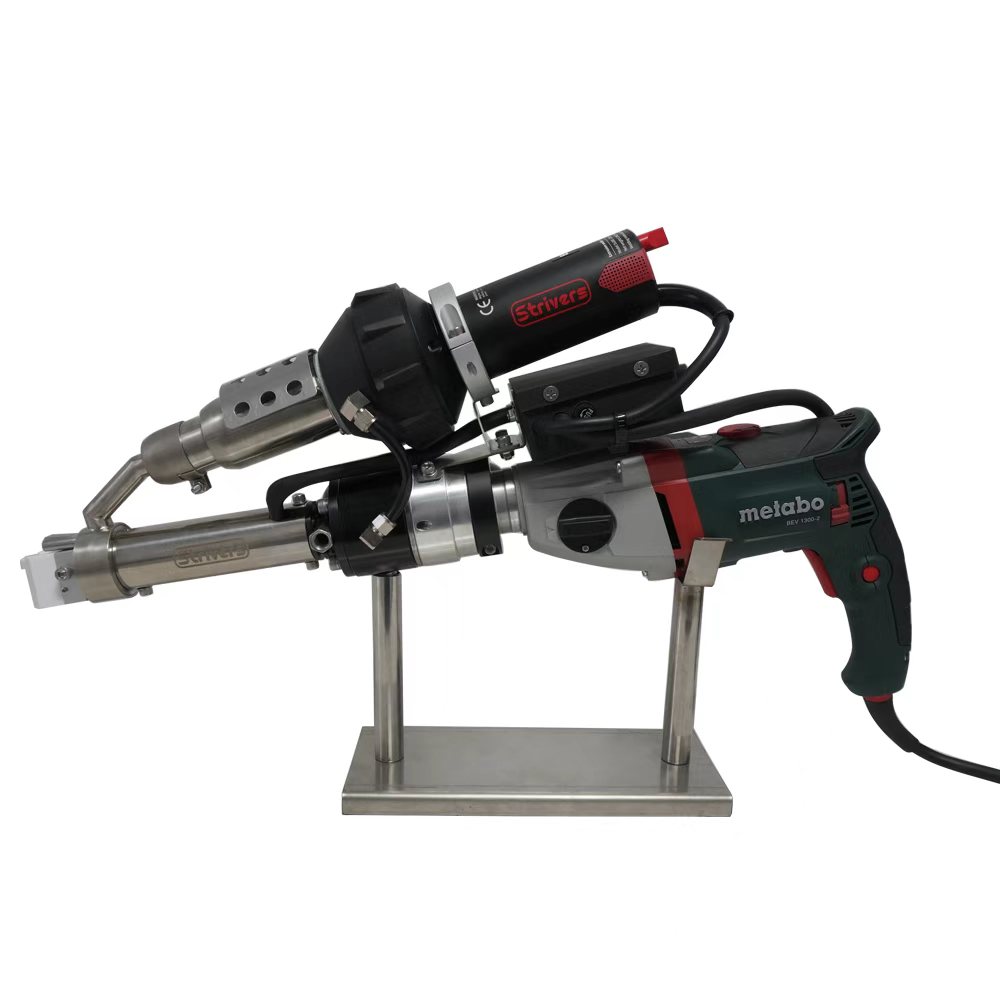

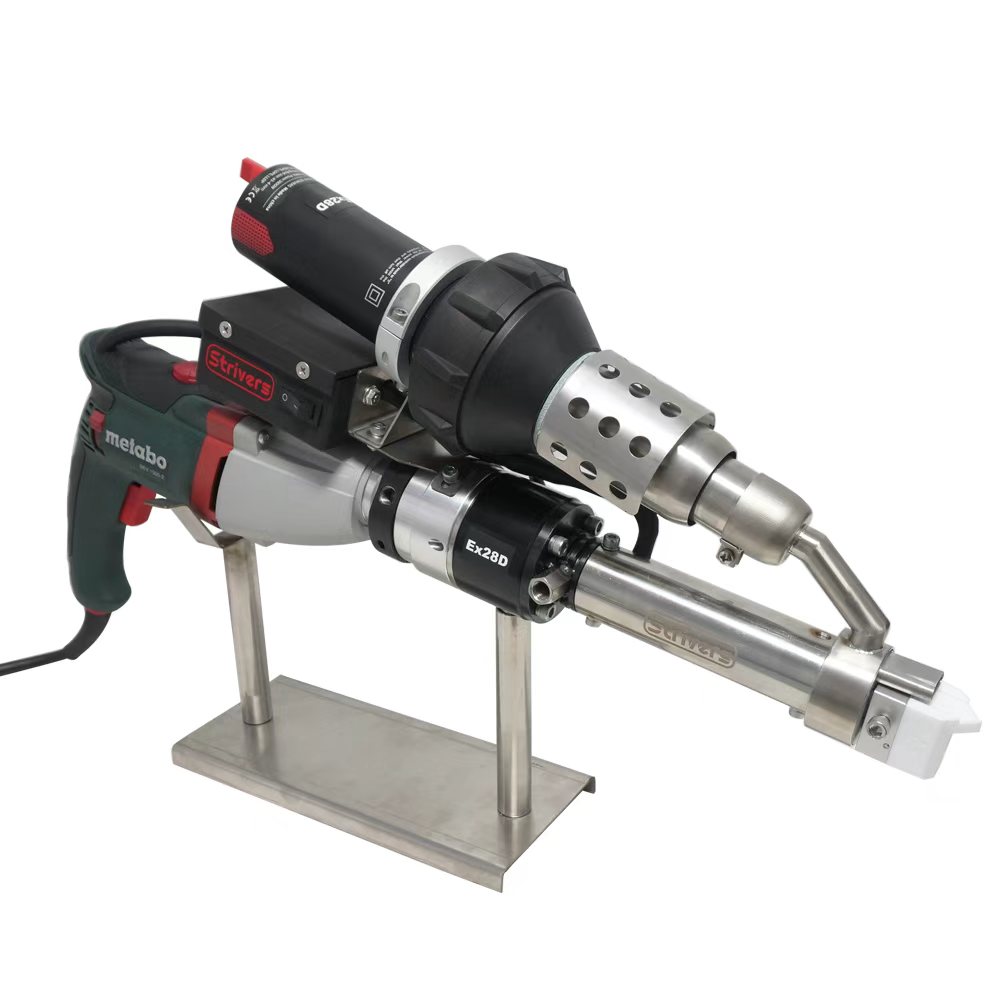

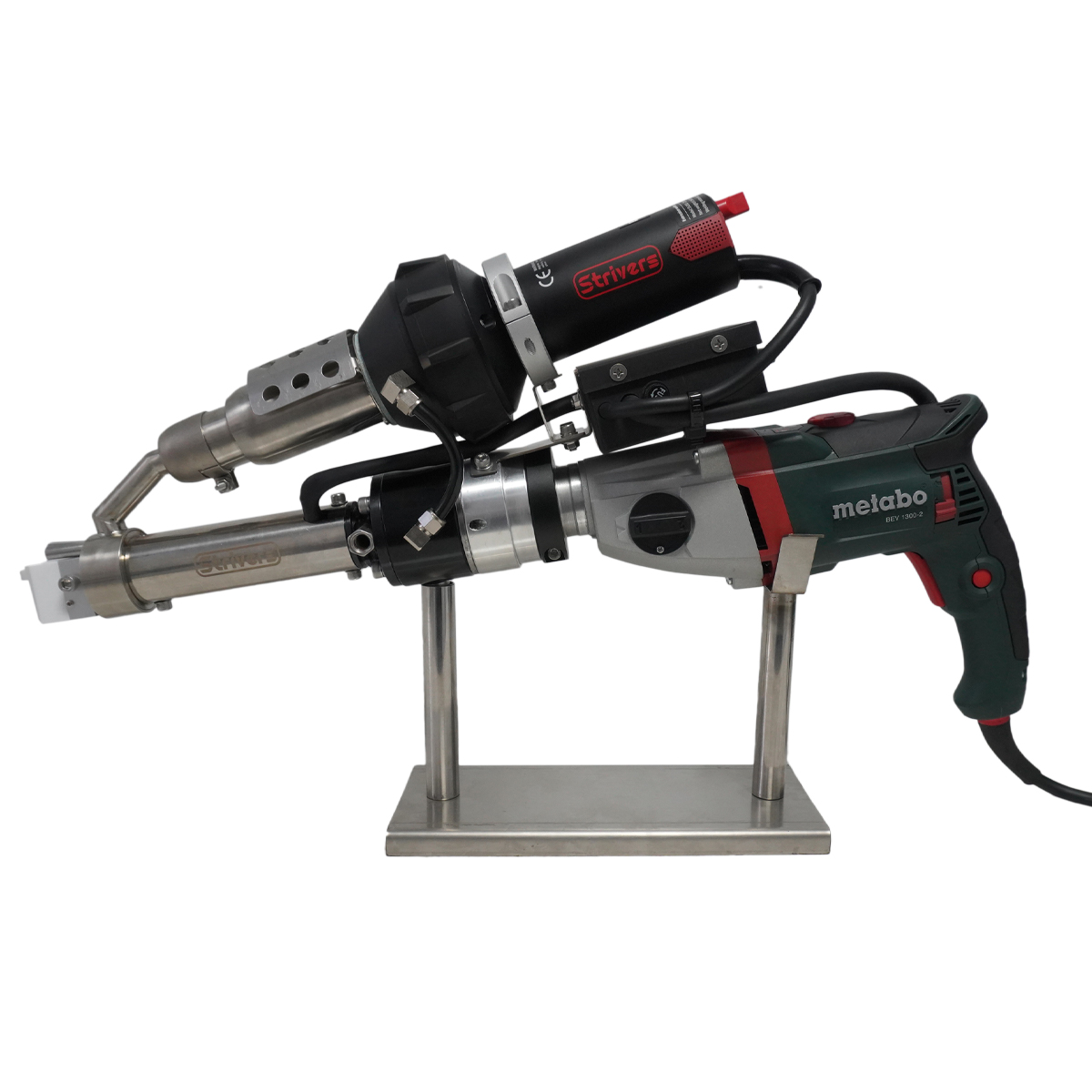

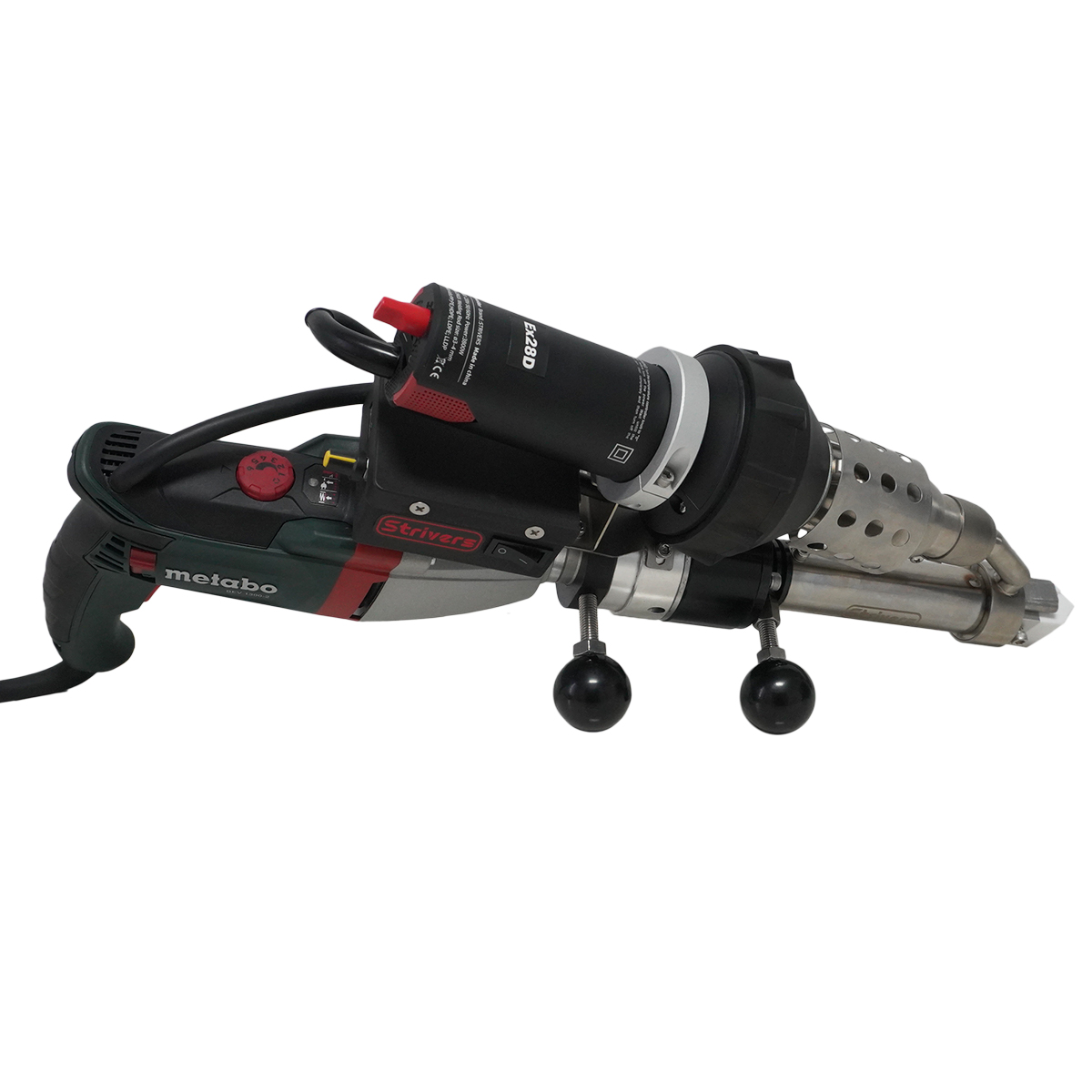

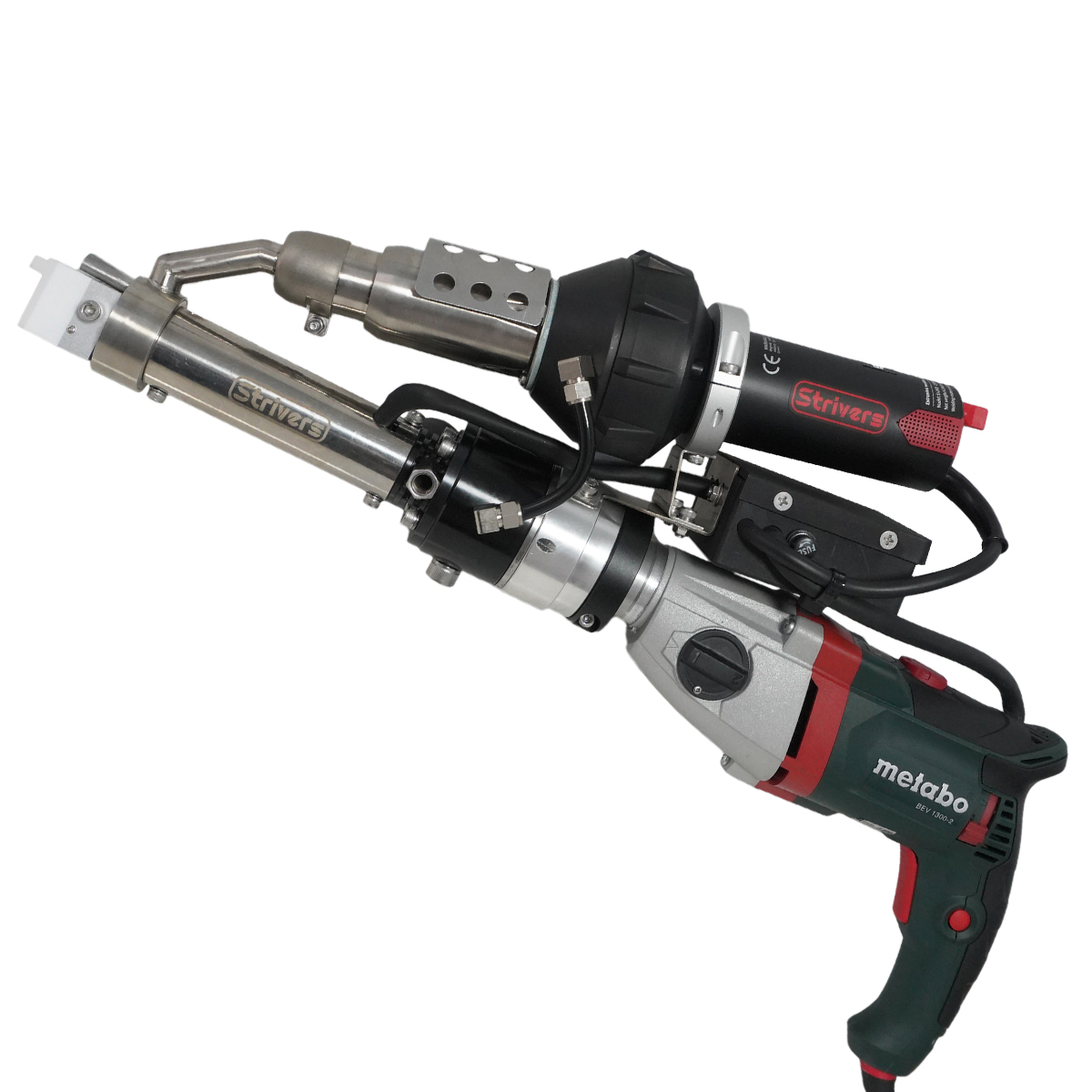

The EX28D is extremely compact, it is a dual heating system extruder with 2.8kgs output. It's extremely durable, ergonomic and comes with countless ways to hold it. Due to the arrow-shaped body that narrows to a point, users may weld corners and difficult-to-reach places more easily than with traditional extruders. The guide for the pre-heated air is integrated into the end of the extruder, enabling the welding shows to be mounted in any position, rotating 360 °.

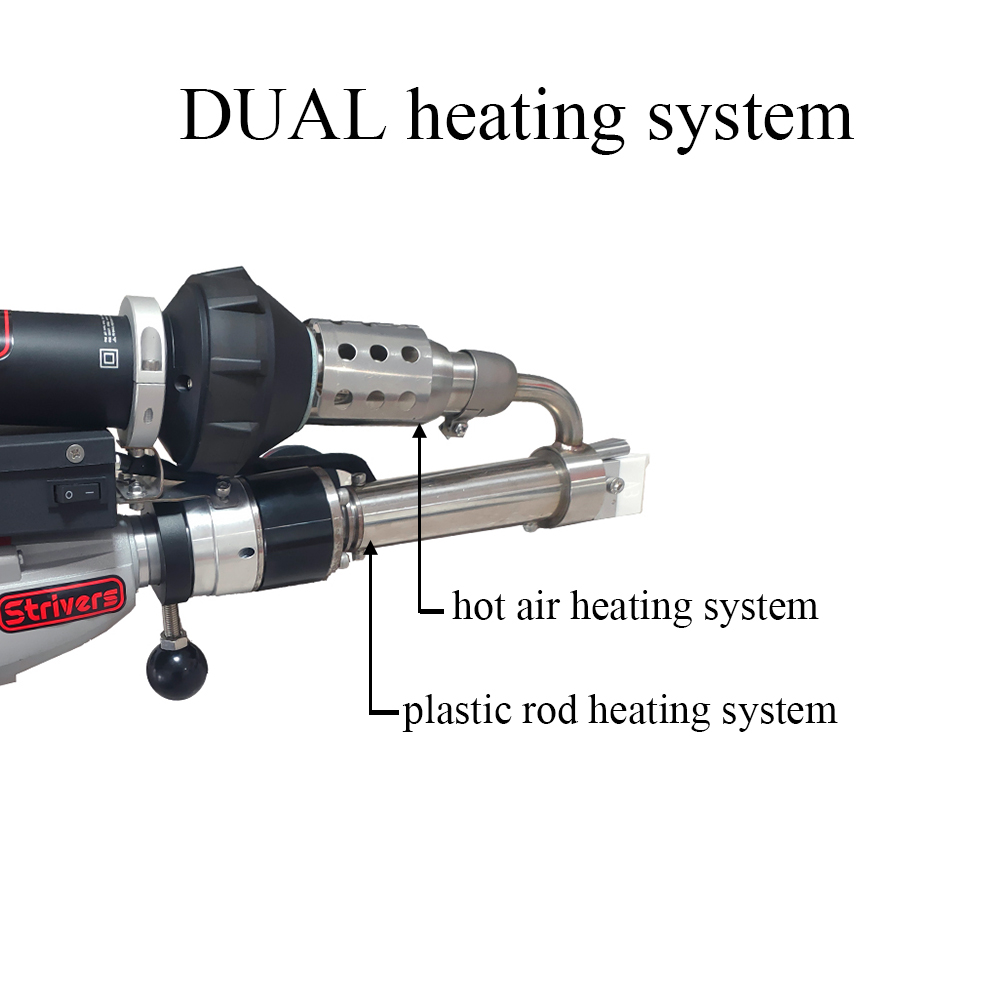

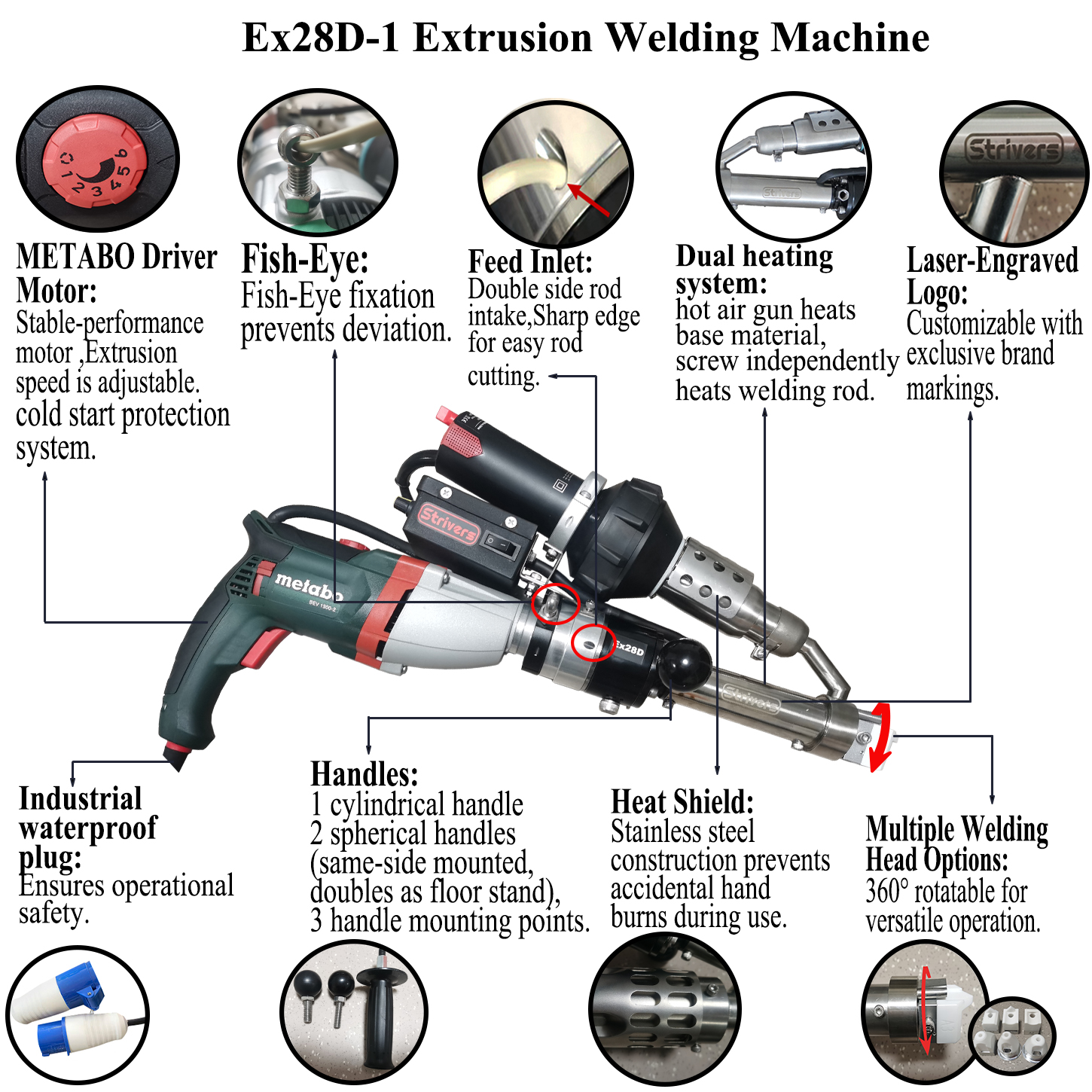

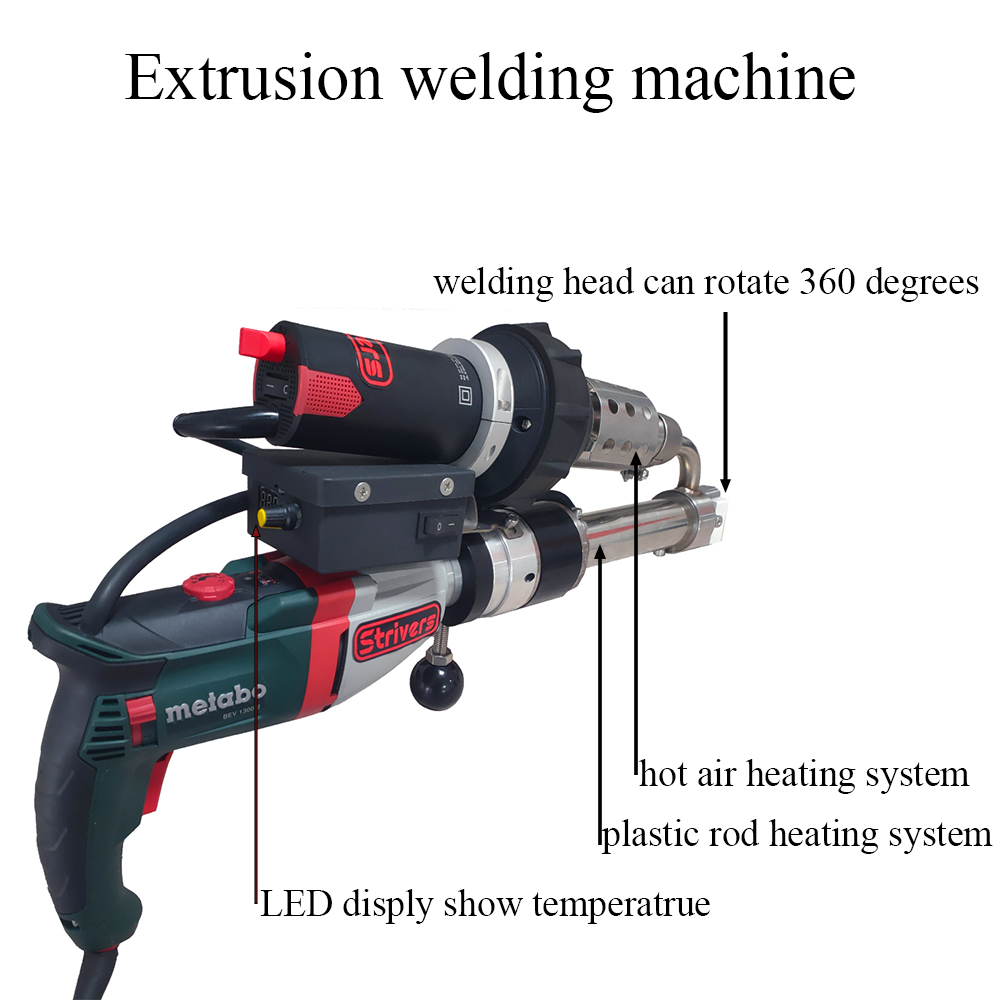

Dual heating system:air heating+screw heating
Light weight and small size
welding shoe can rotate 360 degrees
Aquaculture construction and repair; Landfill and mining membrane welding,Pipe and tube welding;Plastic tank fabrication;Boat construction and repair;Pipe and tube welding;Plastic repairs;Pond waterproofing;Reservoirs and canals waterproofing;Tunnel waterproofing
PP/HDPE/PVD/PP;PE; LDPE; LLDPE

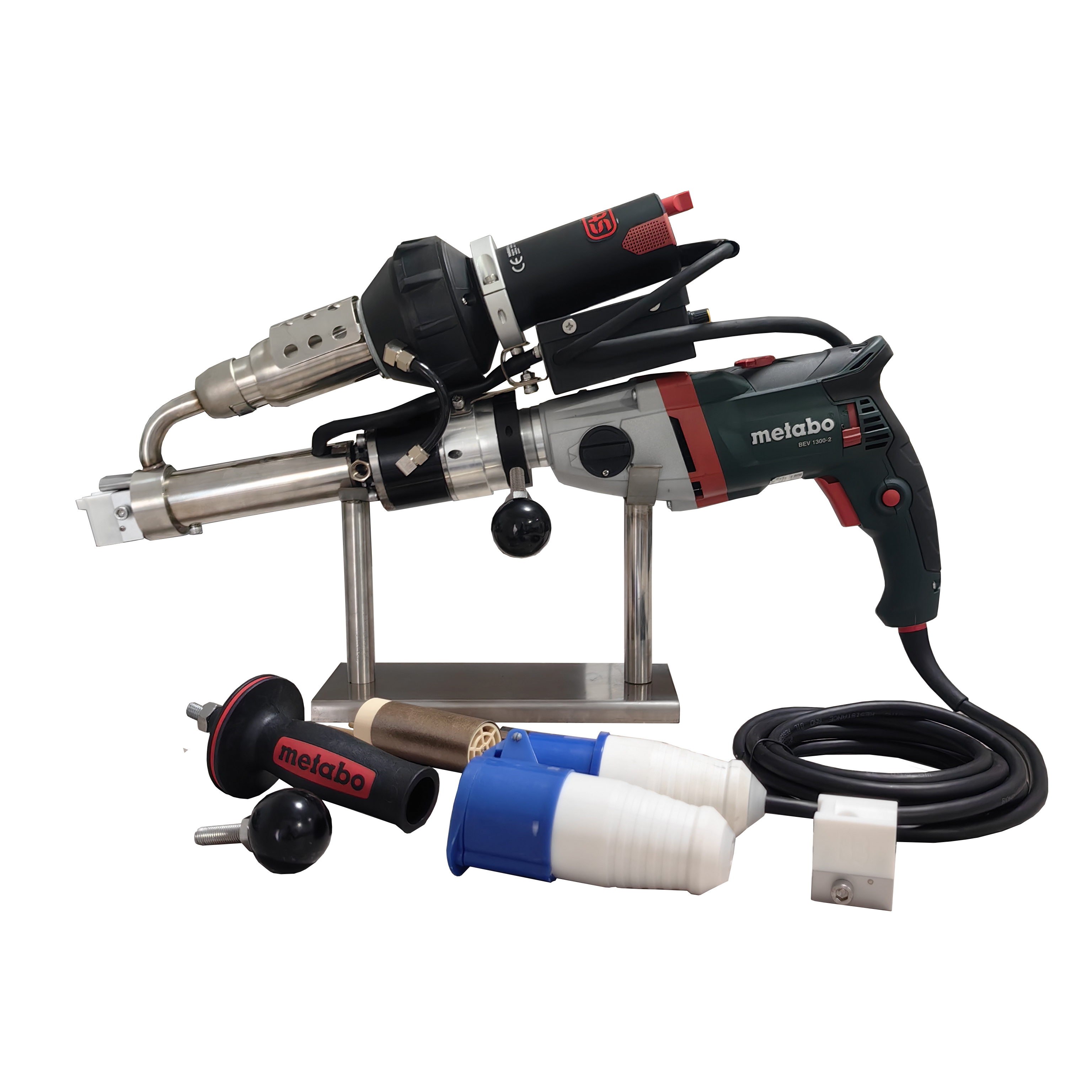

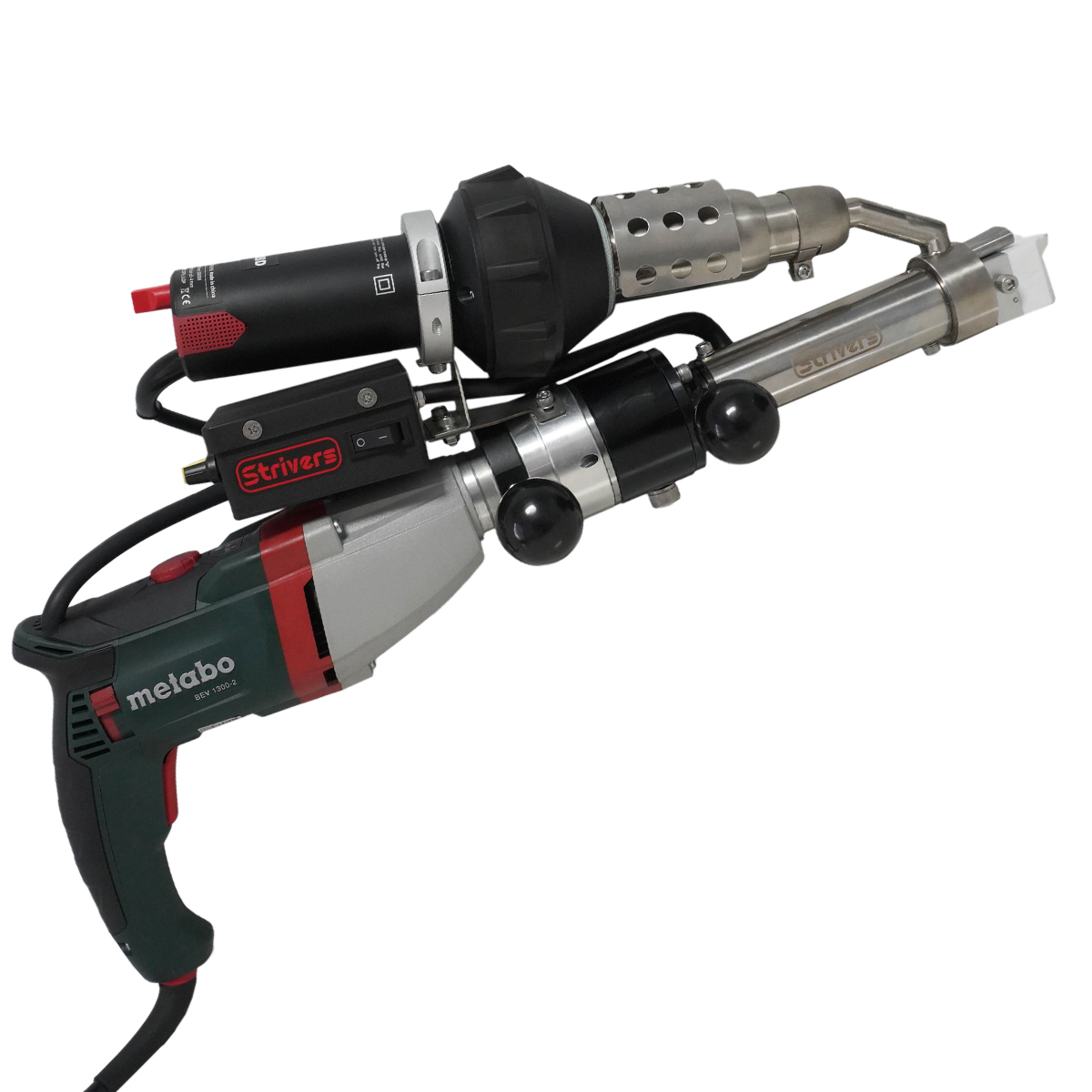

Welding shoe,Screwdriver tools,spare heat element, spare carbon brush for heat gun,cylindrical handle， spherical handles

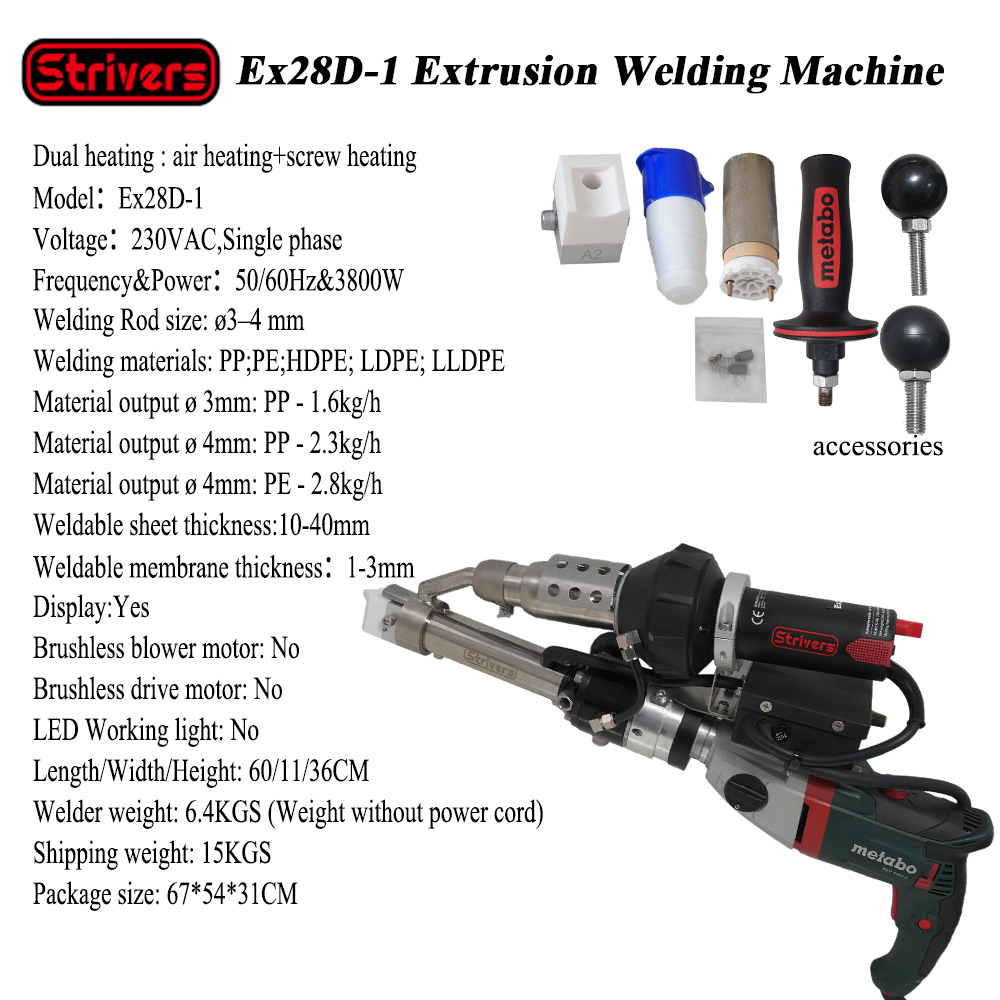

Technical Data
Voltage
230VAC,Single phase
Frequency
50/60Hz
Power
3800W
Welding Rod size
ø3–4 mm
Welding materials
PP;PE;HDPE; LDPE; LLDPE
Material output ø 3mm PP
1.6kg/h
Material output ø 4mm PP
2.5kg/h
Material output ø 4mm PE
2.8kg/h
Weldable sheet thickness
10-40mm
Weldable sheet thickness
10-40mm
Weldable membrane thickness
1-3mm

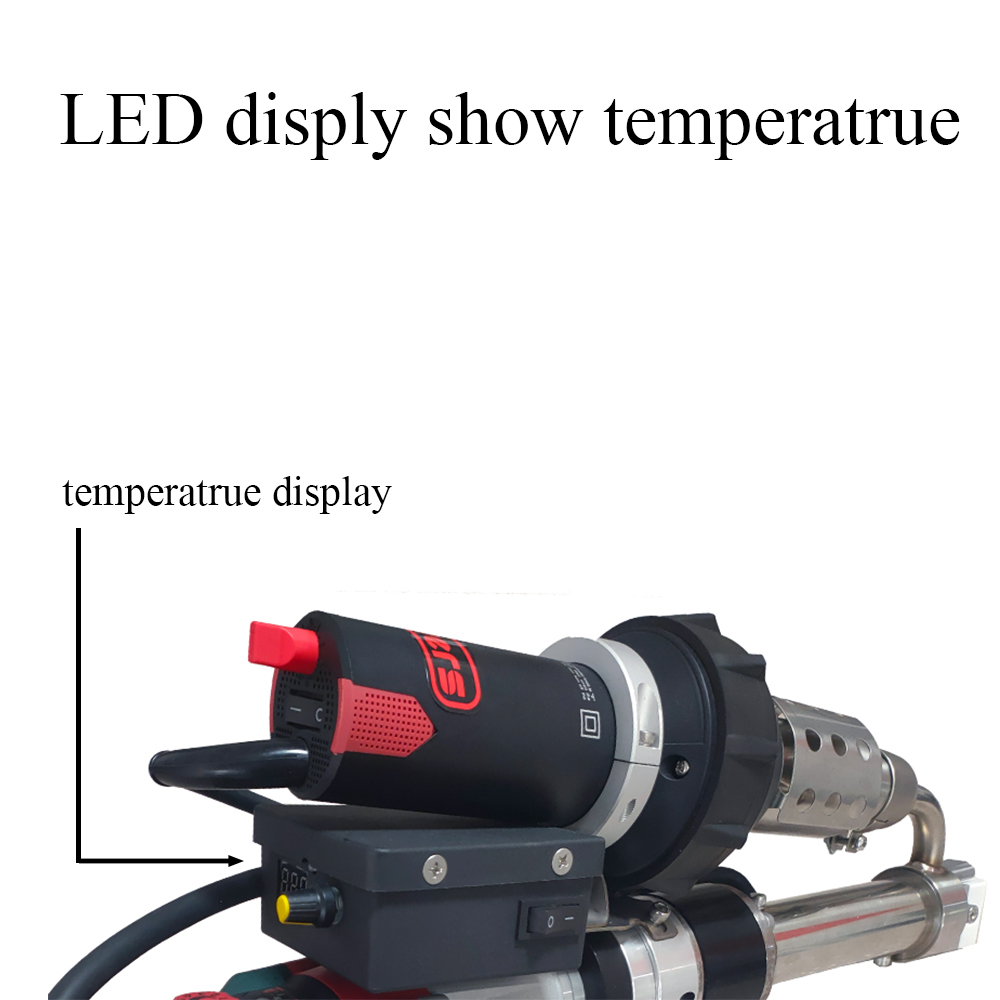

Screw heating temperature Display
YES
Brushless blower motor
NO
Brushless drive motor
NO
Length*Width*Height
60*11*36cm
Welder weight
6.4KGS (Weight without power cord)
Shipping weight
15KGS
Package size
67*54*31CM
