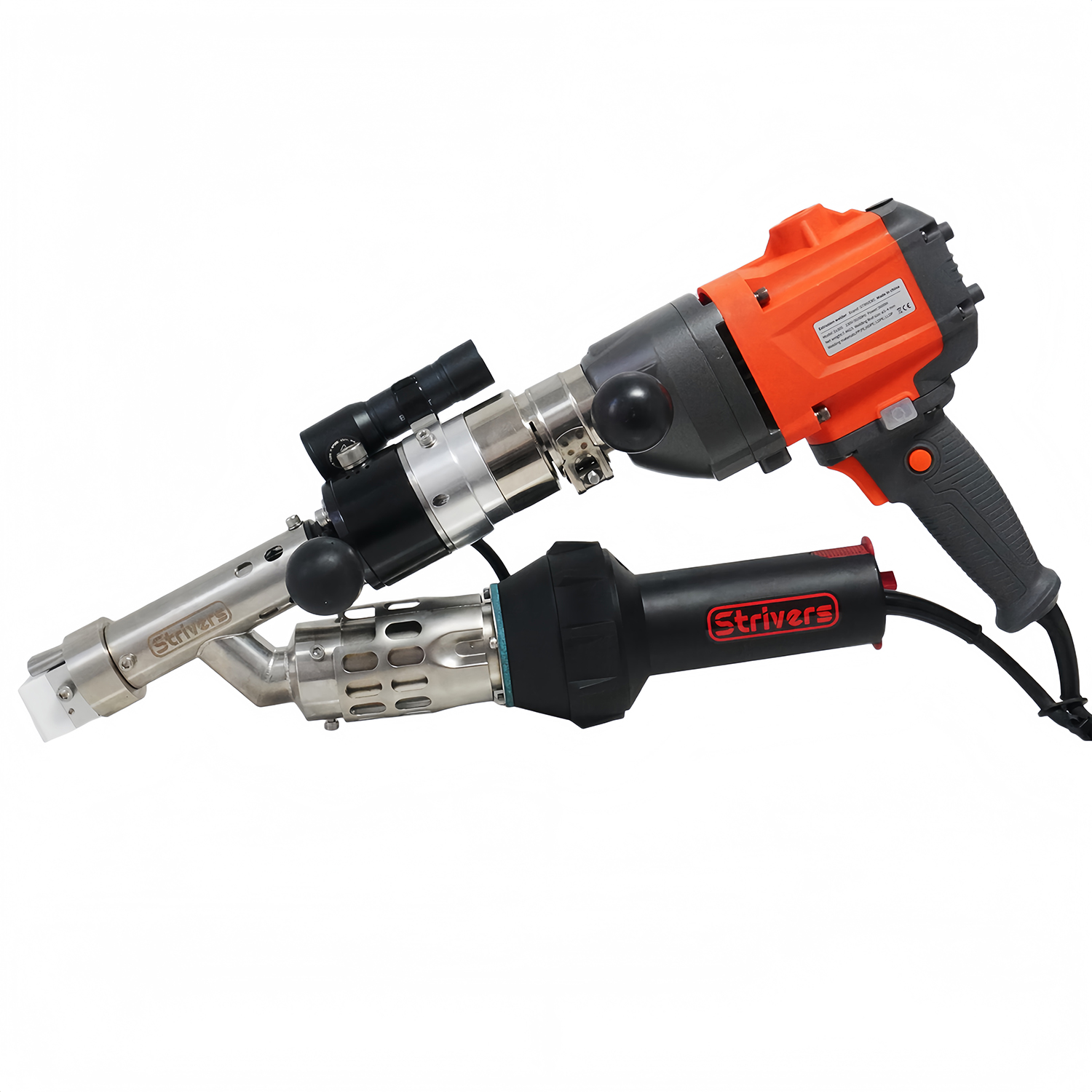

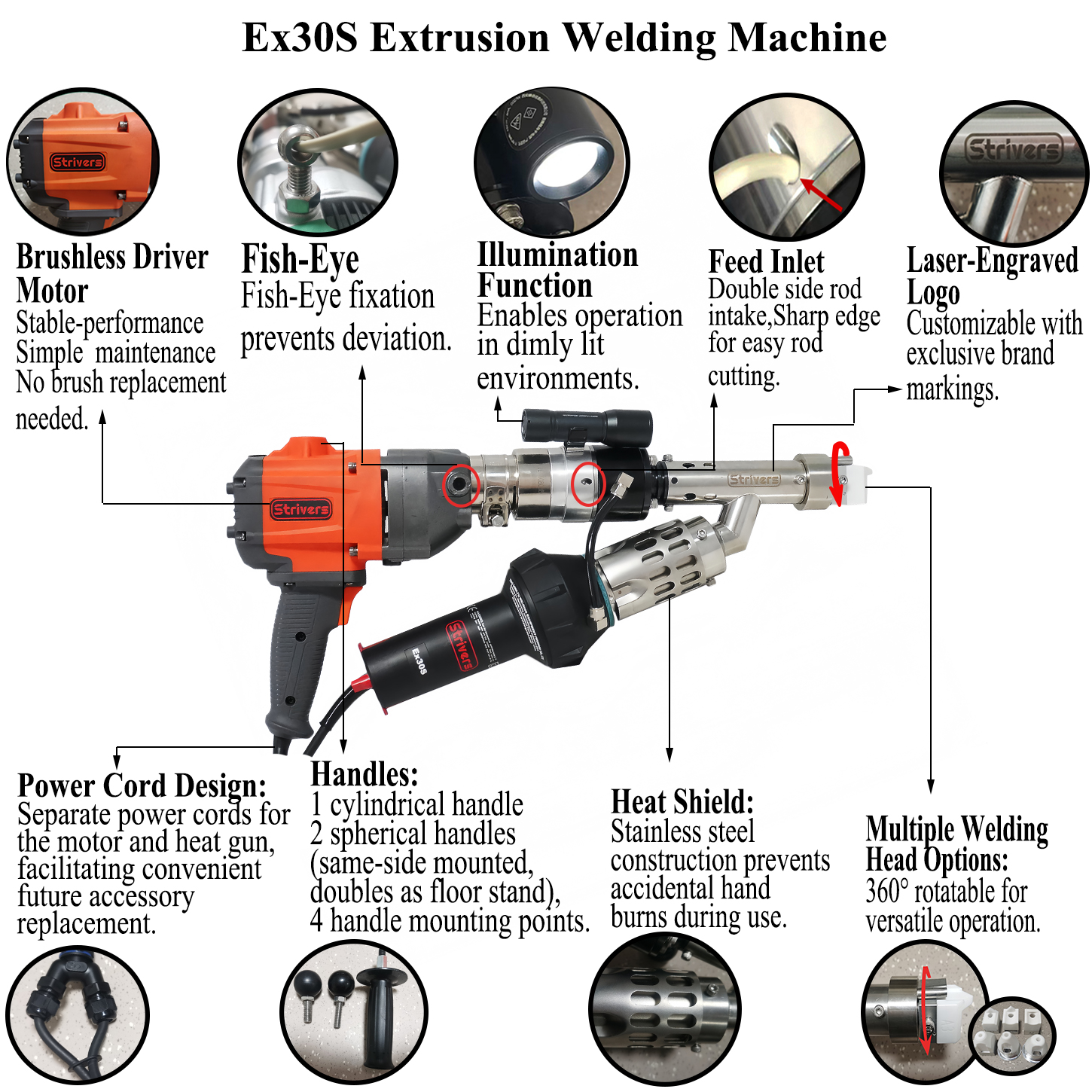

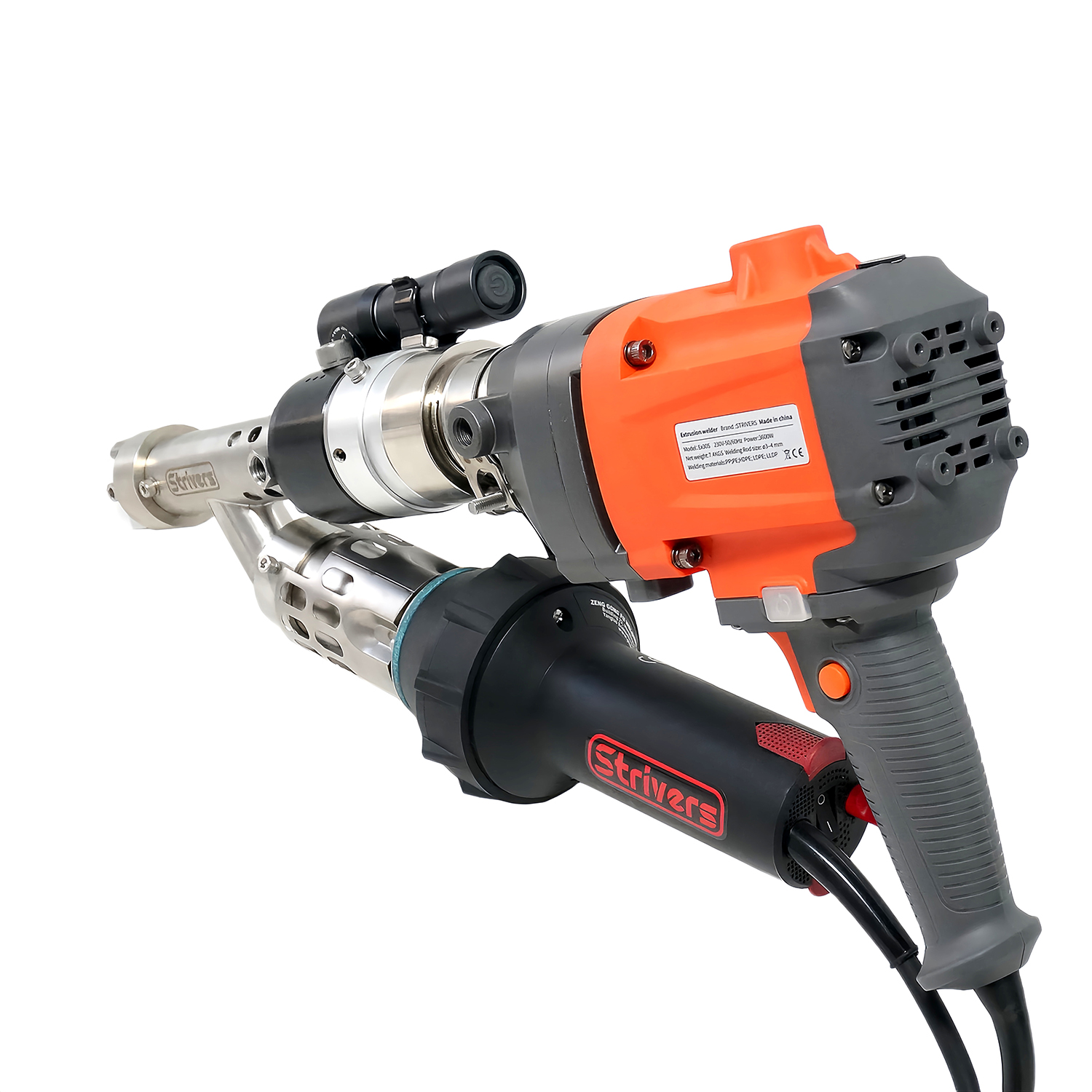

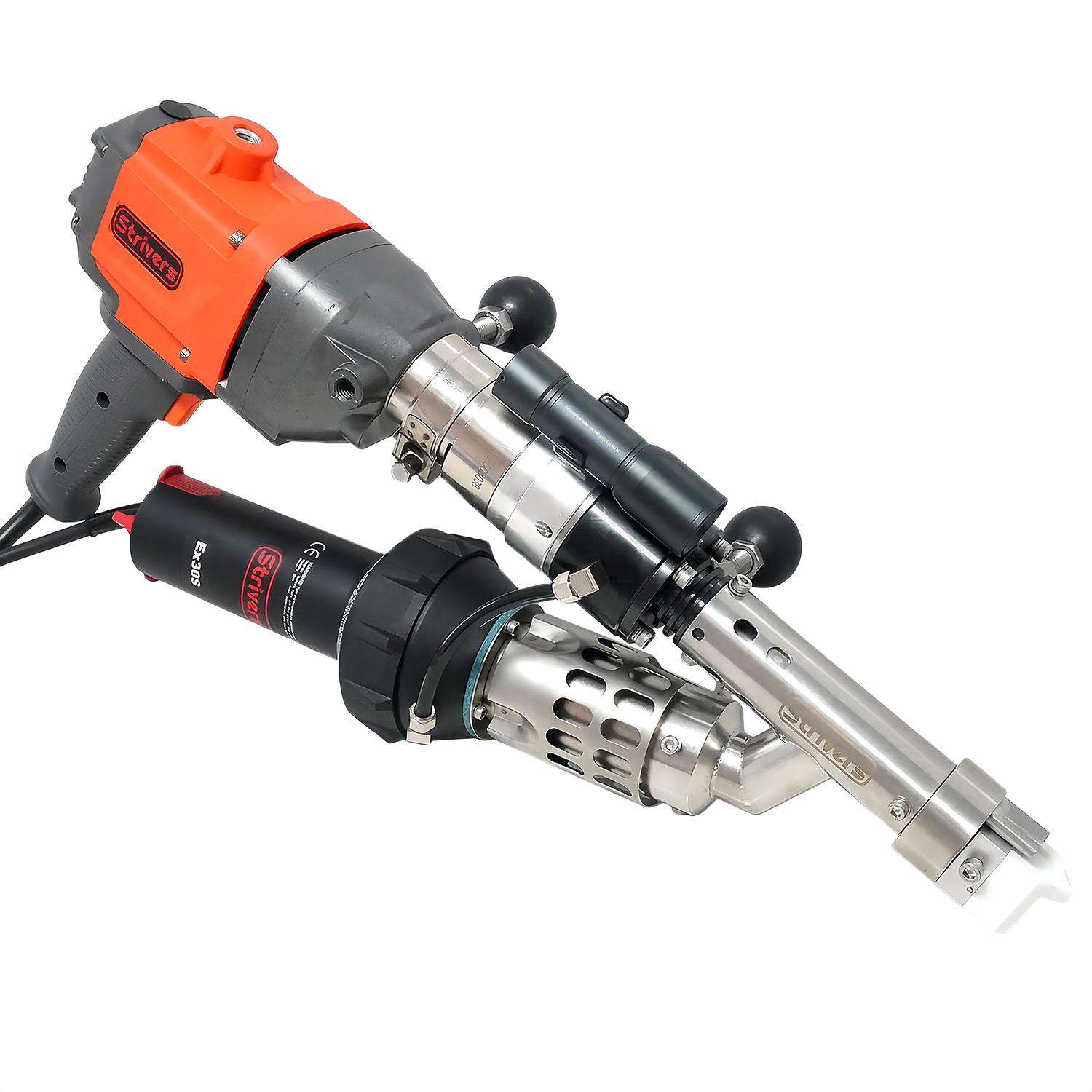

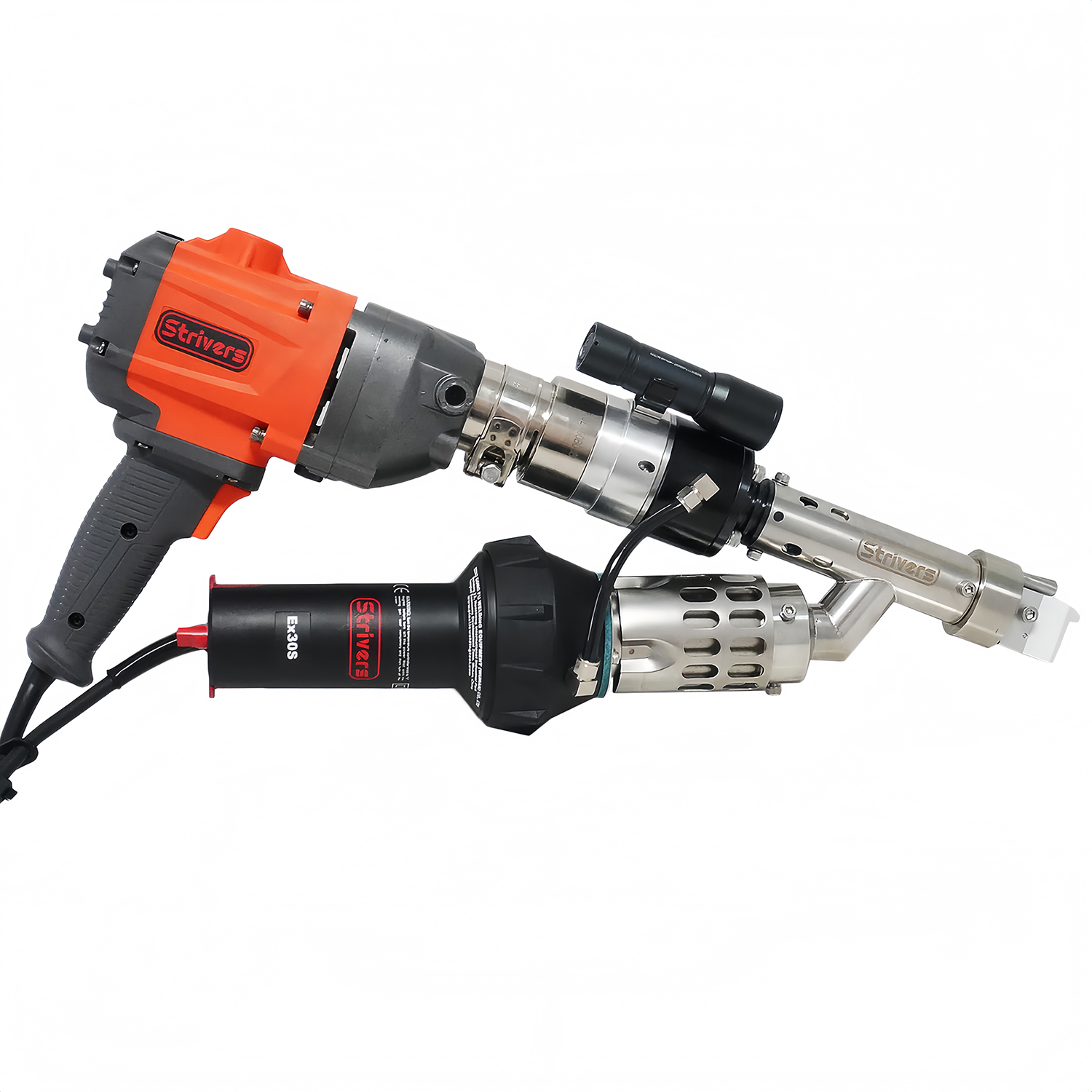

The EX30S extrusion welder is great for equipment and container construction. The extruder also stands out with its sensible design. the motor is installed on top, the blower are located on the bottom of the tool. This makes the welder short and compact. In addition, it has a variety of holding options for various positions that users assume while welding. it achieves an output volume of up to 3.0 kg/h.

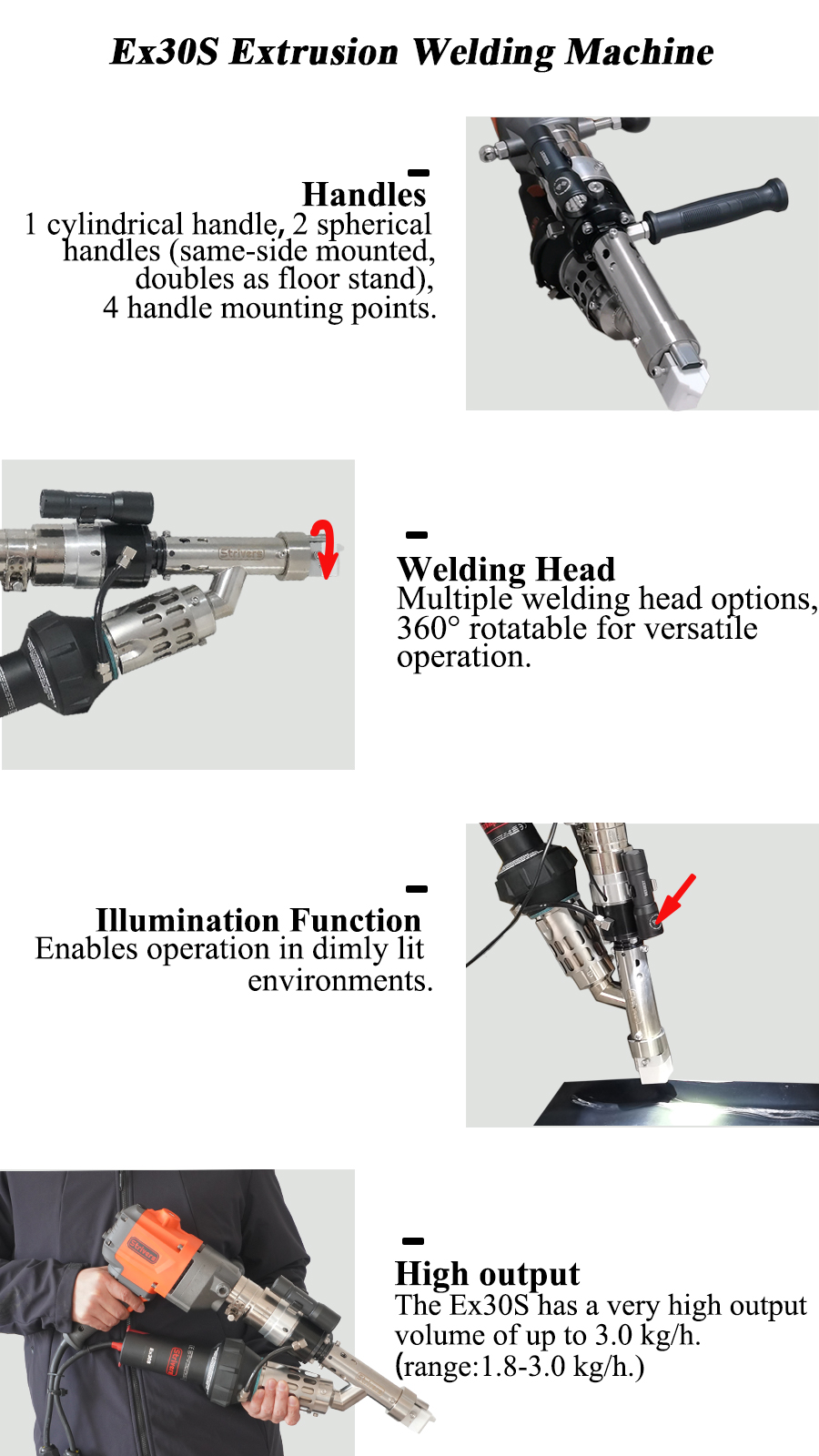

welding shoe can rotate 360 degrees
Fit with flashlight
Using Brushless driving motor
quaculture construction and repair; Landfill and mining membrane welding,Pipe and tube welding;Plastic tank fabrication;Boat construction and repair;Pipe and tube welding;Plastic repairs;Pond waterproofing;Reservoirs and canals waterproofing;Tunnel waterproofing
PP/PE/PVD
Welding shoe,Screwdriver tools,spare heat element, spare carbon brush for air gun,cylindrical handle， spherical handles

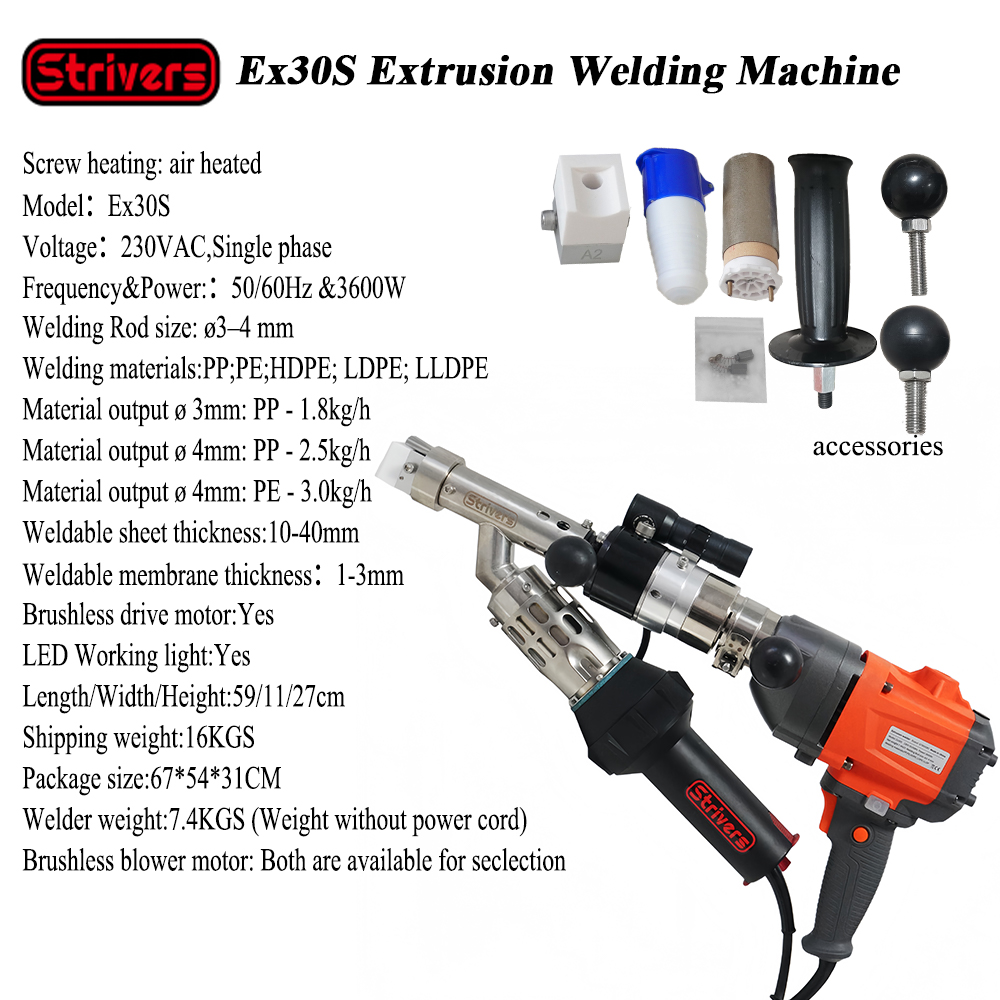

Technical Data
Voltage
230VAC,Single phase
Frequency
50/60Hz
Power
3500W
Welding Rod size
ø3–4 mm
Welding materials
PP;PE;HDPE; LDPE; LLDPE
Material output ø 3mm PP
1.8kg/h
Material output ø 4mm PP
2.6kg/h
Material output ø 4mm PE
3.0kg/h
Weldable sheet thickness
10-40mm
Weldable membrane thickness
1-3mm
Temperature Display
NO
Brushless blower motor
NO
Brushless drive motor
YES
Flashlight
YES
Length*Width*Height
59*11*27cm
Welder weight
7.8KGS (Weight without power cord)
Shipping weight
16KGS
Package size
67*54*31CM
